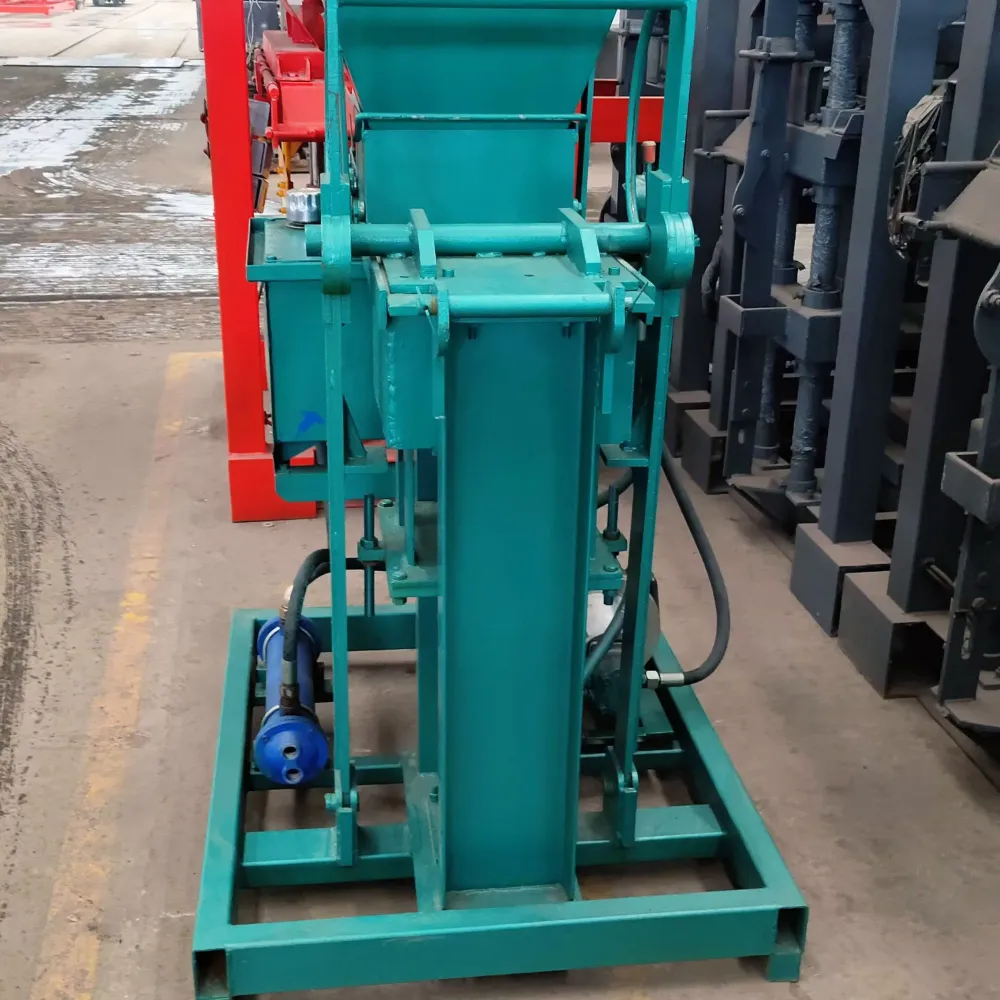

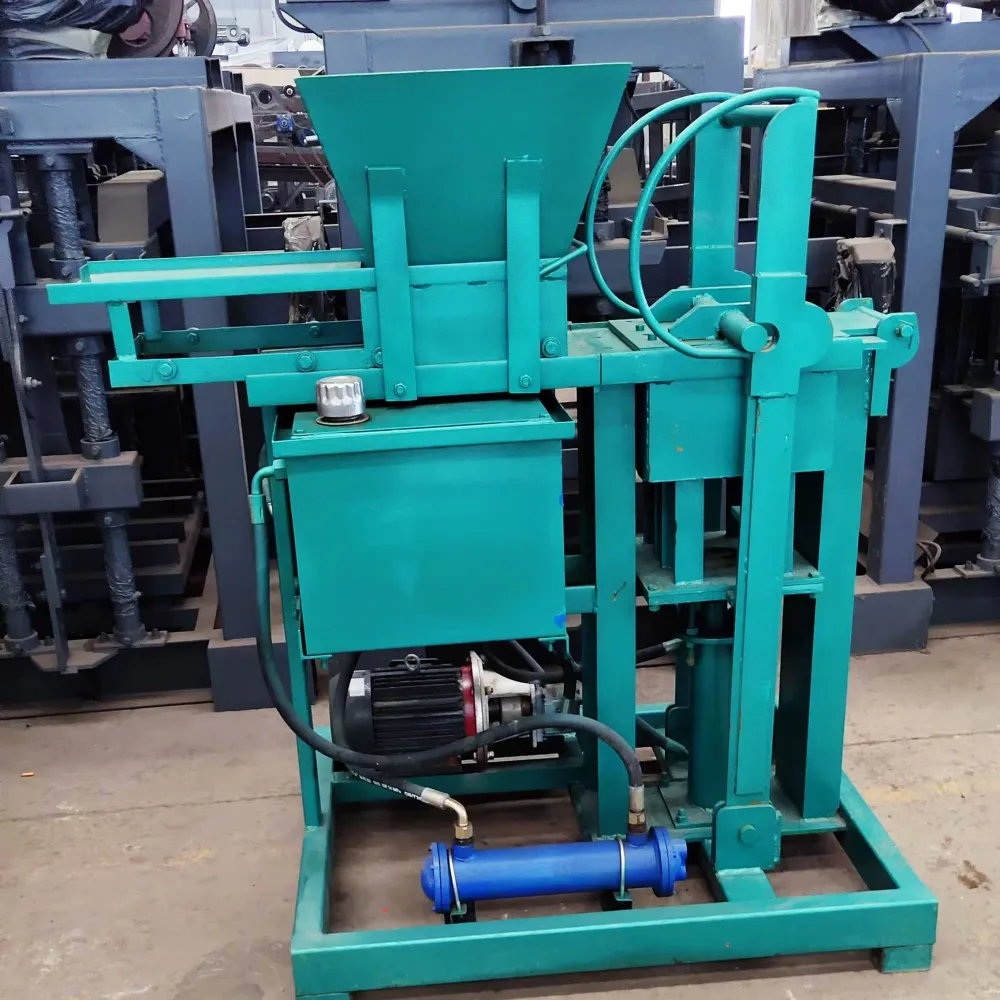

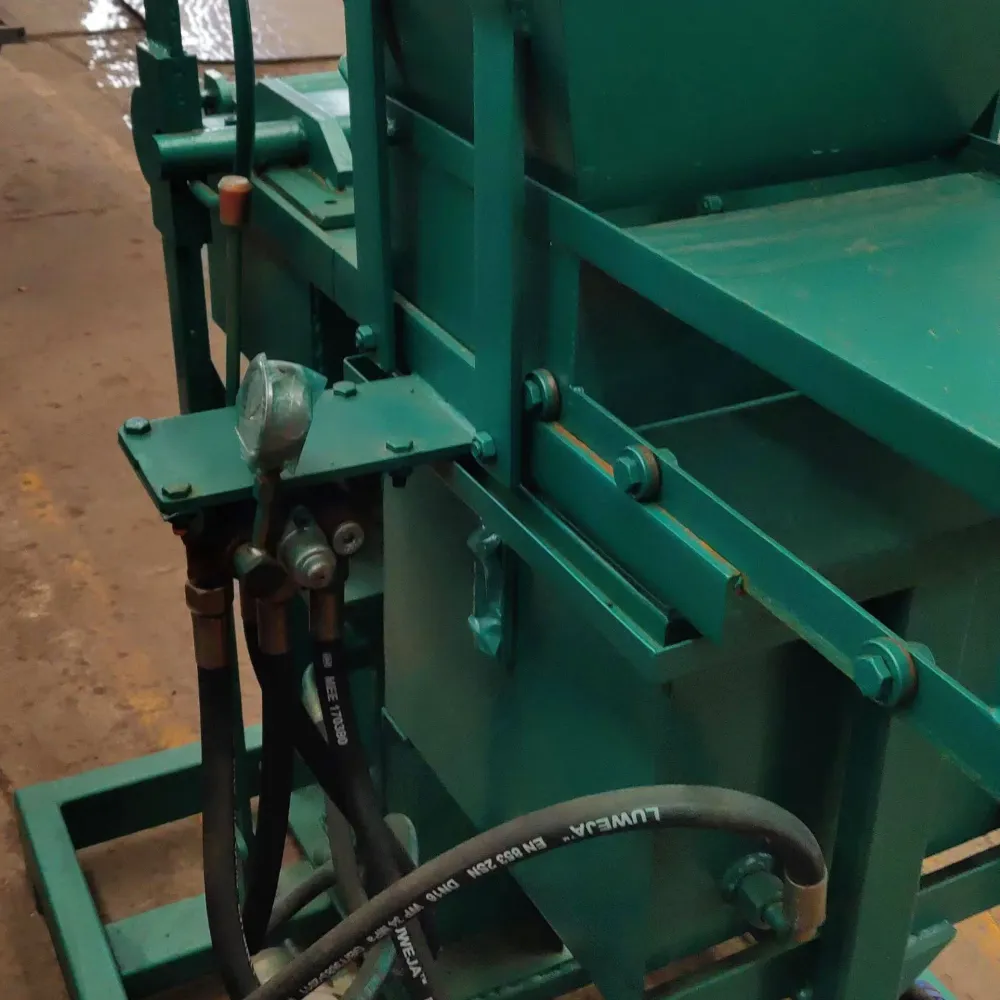

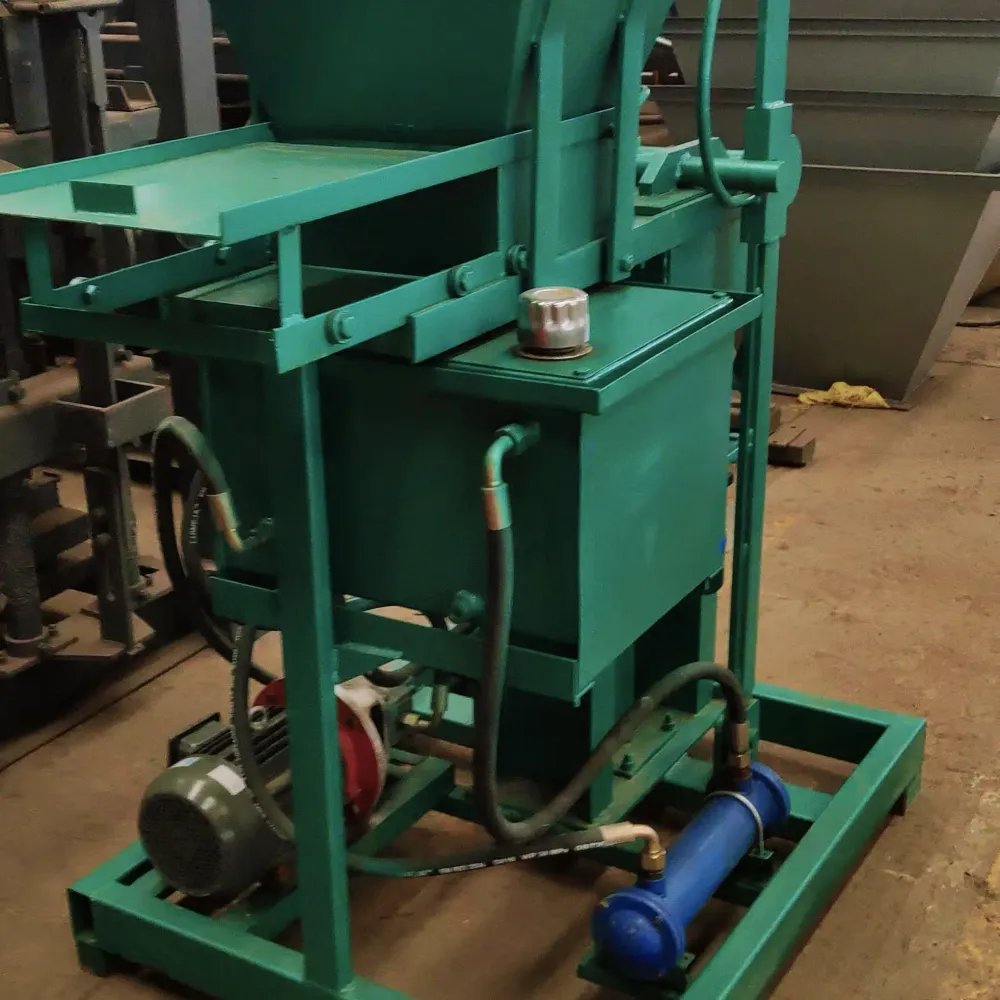

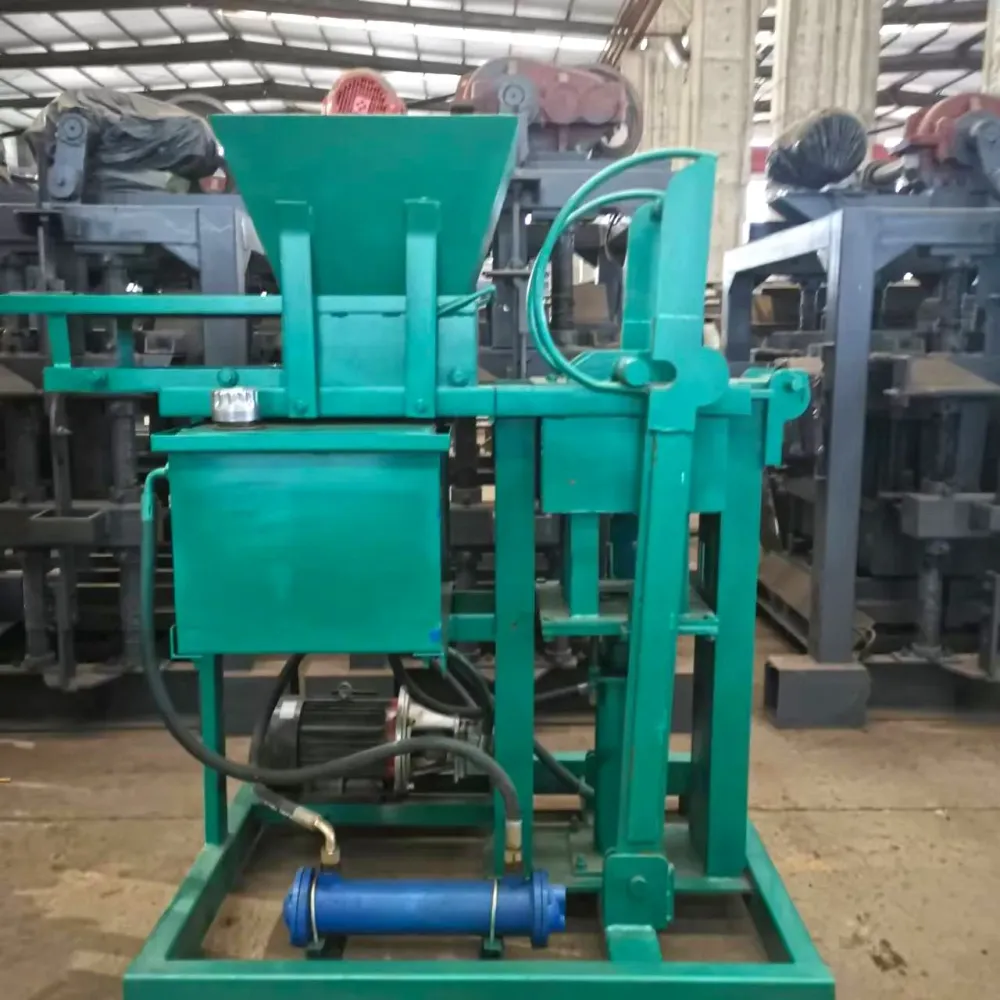

Designed for high-throughput concrete product factories, the Block Machine delivers repeatable quality with reduced labor and energy consumption. The vibration table adopts multi-point, high-frequency exciters synchronized with hydraulic pressing to compact the mix quickly and evenly—achieving high density, edge integrity, and low water absorption. Variable frequency drives (VFDs) optimize vibration amplitude by product type, protecting molds while shortening cycle time.
Configurable modules include:
The system handles cement, sand, gravel, fly ash, slag, and recycled fines; water/cement ratios are optimized for strength and finish. Typical products: 390×190×190 hollow block, 200×100×60 paver, kerb stones, solid bricks, grass pavers. Safety is built-in via light curtains, emergency circuits, and torque/pressure protections. Remote support and multilingual UI reduce commissioning time and training costs. CE/ISO compliant.
| Item | Specification |
| Control Method | Manual Control |
| Molding Cycle | 30~40s |
| Max Pressing Force | 75kN |
| Max Demolding Force | 75kN |
| Rated Pressure | 16Mpa |
| Max Permissible Oil Temperature | 60℃ |
| Interlocking Brick | 300×150×200 (2 pcs/mold) |
| Hollow Brick | 240×115×90 (2 pcs/mold) |
| Standard Brick | 240×115×53 (4 pcs/mold) |
| Paver Brick | 200×100×60 (2 pcs/mold) |
| S Brick | 225×112.5×60 (2 pcs/mold) |
| Hydraulic Pump | Gear Pump CBT-F310, Displacement 10ml/r |
| Operating Power | 3kW |
| Hydraulic Station Motor | Y100L-2-4, 3.0kW, 1400r/min |
| Overall Dimensions | L1200×W900×H1460mm |
Our team collaborates with various industries, each with its own specific needs. With a strong background in experience and a dedication to customer satisfaction, our committed team takes immense pride in crafting high-quality, customized solutions for block making to satisfy a wide array of requirements.
We produce al kinds of no burning brick machine mould, qt6-15 brick machine mould, gt8-i5 brick machine mould, gtl0-15 brick
