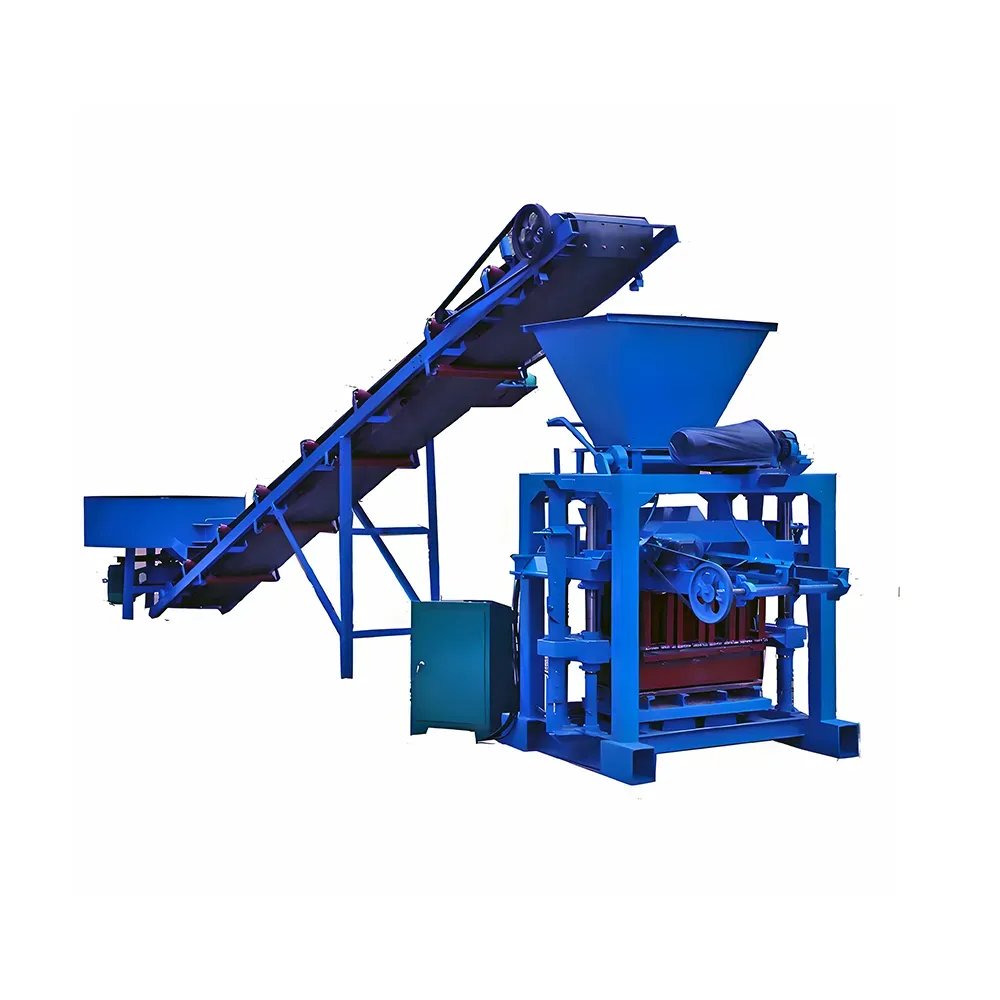

QT4-35 Automatic Block Machine

The 4-35 type brick machine is designed by our company according to the design specifications of small and medium-sized hollow block machines in China. The brick machine is different from the traditional kiln brick making process in the process of producing bricks. Requires firing process. The machine has strong stability and abrasion resistance. The trip switch is installed, which greatly improves the product quality, high pressure, good performance and easy operation. It is also equipped with an electromagnetic brake motor to effectively eliminate aftershocks and greatly improve production efficiency. It saves labor and power, has a small investment and quick results. , Is the ideal model for small and medium investors.

4-35 brick machine Mainly used for the main raw materials, such as fly ash, river sand, sea sand, mountain sand, ore powder, slag, stone powder, coal slag, coal gangue, tailings slag, chemical slag, etc., add a certain proportion of cement or white ash to make bricks Press molding. The shapes that can be pressed according to different molds are standard bricks, porous bricks, blind-hole bricks, hollow bricks, pavement bricks and bricks with special needs; according to the later curing process, they can be divided into natural curing non-burning bricks and autoclaved curing bricks ( Autoclaved bricks) and so on. It is an environmentally-friendly wall material processing equipment in line with industrial policies and new wall material reform.

2. Advantages and characteristics of 4-35 no-fire brick machine:
1) Reasonable design, compact structure, full mechanical transmission, low failure rate.
2) Pressing up and down, strong vibration, suitable for high-strength block production after stacking (3-5 layers high)
3) Multi-purpose machine, with different molds can produce various specifications of blocks.
4) The uniformity and strength of the block are high, and its performance is comparable to that of large equipment.
5) Electrical appliances, bearings, stable and reliable performance.
6) Equipped with automatic protection device, high safety factor, not easy to damage the machine.
7) High technology and high quality.

3.Main technical parameters of 4-35 block brick machine:
Dimensions: 1200 × 1200 × 1600mm
Molding cycle: 30 seconds / times
Designed production capacity: 6000 / class (pavement tiles)
Total motor power: 4.8KW
Machine quality: 1 ton
Pallet specifications: 850 × 450 × 30mm
Productivity:
240 × 115 × 53 24 pcs / mould 14000-17000 pcs / 8 hours
390x190x190 4 pieces / mould 2000-3000 pieces / 8 hours
Hexagonal block with Length 200mm, 2 pieces / mould, 1900 pieces / 8 hours
Hexagonal block with Length 300mm, 1 block / mould, 960 blocks / 8 hours
